2.7.Compare #

The Compare plugin displays comparisons of daily, weekly, and monthly cost or consumption data for all sensors of a specified Display Group.

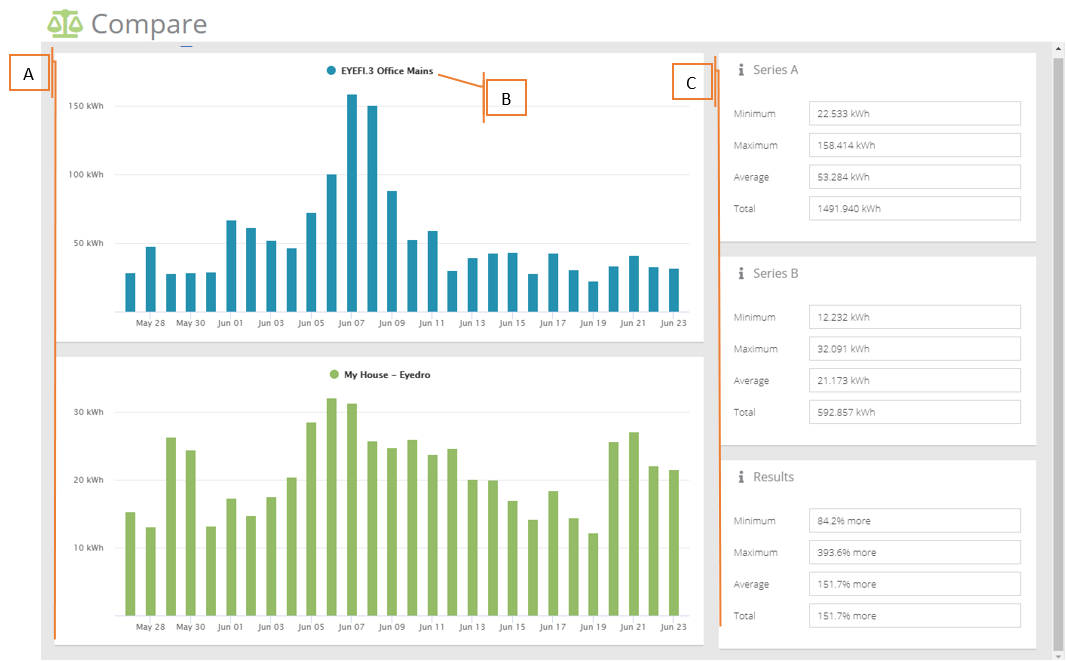

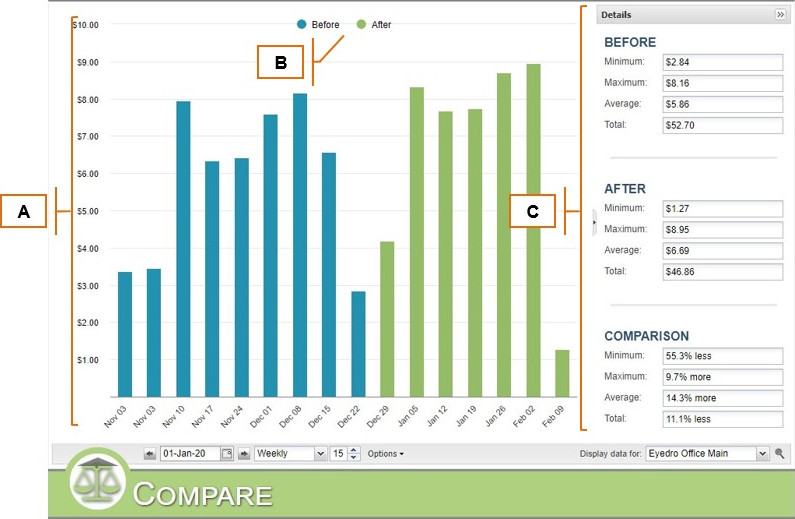

Image of the compare graph with labels that correspond to the table of descriptions below the image.

 FieldHow It’s Used

A

Comparison GraphDisplays comparisons of daily, weekly, and monthly cost or consumption data for all sensors of a Display Group.

B

Comparison Graph LegendDisplays the graph legend and is used to toggle different series on or off in the Comparison Graph.

C

DetailsDisplays basic statistics for current graph data and the comparison between the different points of interest.



Additional Display Options

To customize the Compare plugin, follow the instructions below.

Compare To

The Compare plugin can be configured to compare between two different Display Groups. This is handy when you want to compare consumption between users who have shared their systems with you.

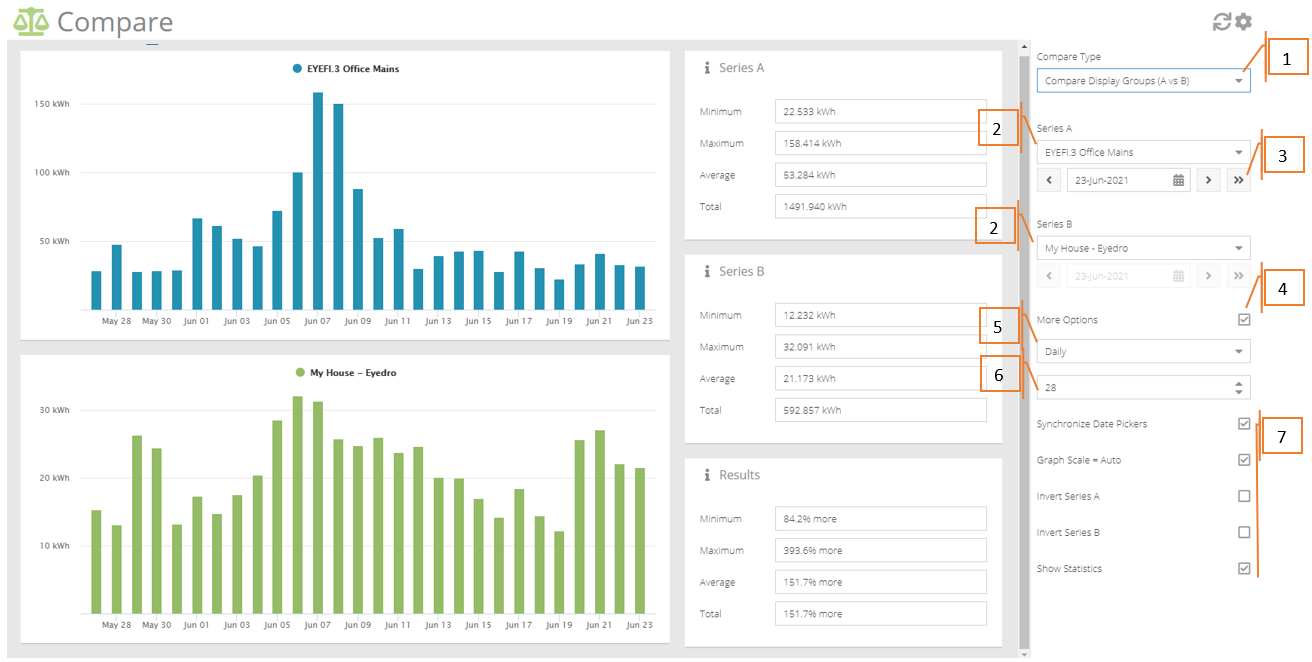

Labeled image of the Compare plugin options to customize the graphs.

  1. Confirm ‘Compare Type’ is on Compare Display Groups.
  2. Specify which first Display Group should be compared to some second Display Group by selecting the appropriate Display Names from the dropdown menus.
  3. Choose the date to which electrical consumption or cost data is displayed. By default this will be set to the current date.
  4. Click on the Options menu to customize your plugin settings.
  5. Choose the scale of the Comparison Graph. 15-minute, hourly, daily, weekly, and monthly scales are currently supported.
  6. Choose the number of steps (in the x-axis) are shown in the Comparison Graph.
  7. Specify the advanced settings to your preference.

Add and Subtract

The Compare plugin can also be configured to compare the summation and subtraction between two different Display Groups. This is handy when you want to compare consumption between users who have shared their systems with you.

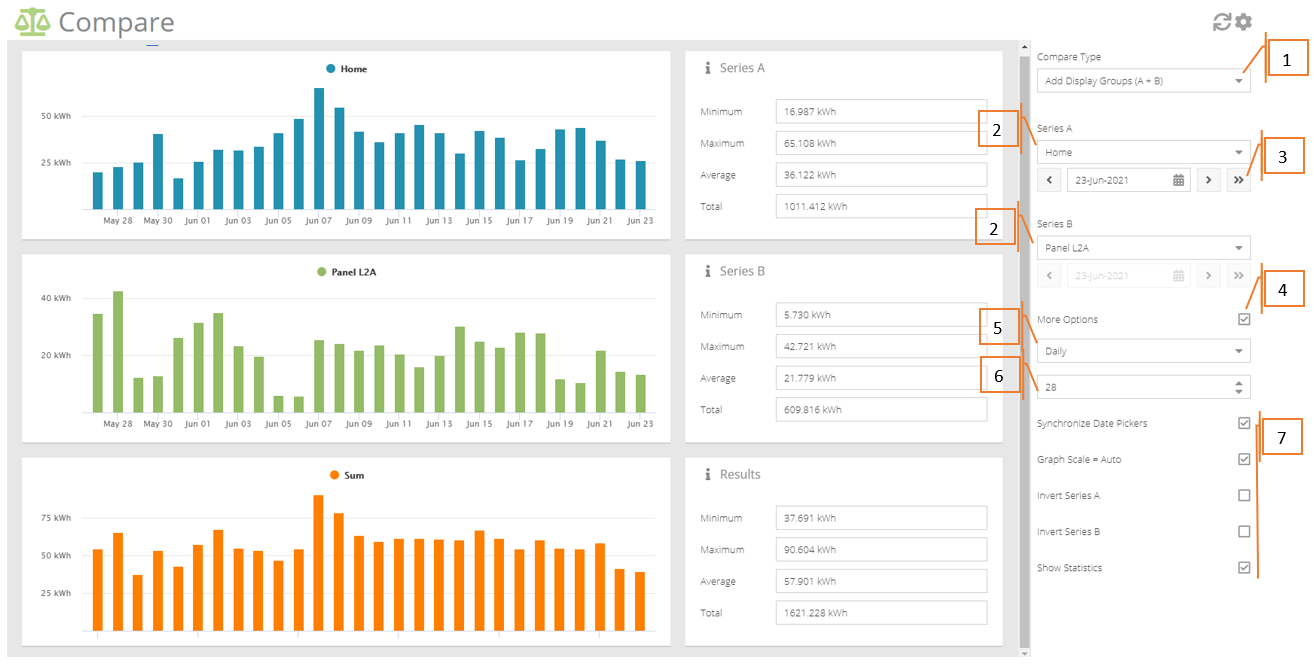

Image of the compare graphs with numbered labels to correspond with instructions on how to see the differences between 2 display groups.

  1. Confirm ‘Compare Type’ is on Add Display Groups OR Subtract Display Groups.
  2. Specify which first Display Group should be compared to some second Display Group by selecting the appropriate Display Names from the dropdown menus.
  3. Choose the date to which electrical consumption or cost data is displayed. By default this will be set to the current date.
  4. Click on the Options menu to customize your plugin settings.
  5. Choose the scale of the Comparison Graph. 15-minute, hourly, daily, weekly, and monthly scales are currently supported.
  6. Choose the number of steps (in the x-axis) are shown in the Comparison Graph.
  7. Specify the advanced settings to your preference.
