2.3.Consumption #

The Summary plugin displays a graph of hourly, daily, weekly, or monthly cost or consumption data for all sensors of a specified Display Group.

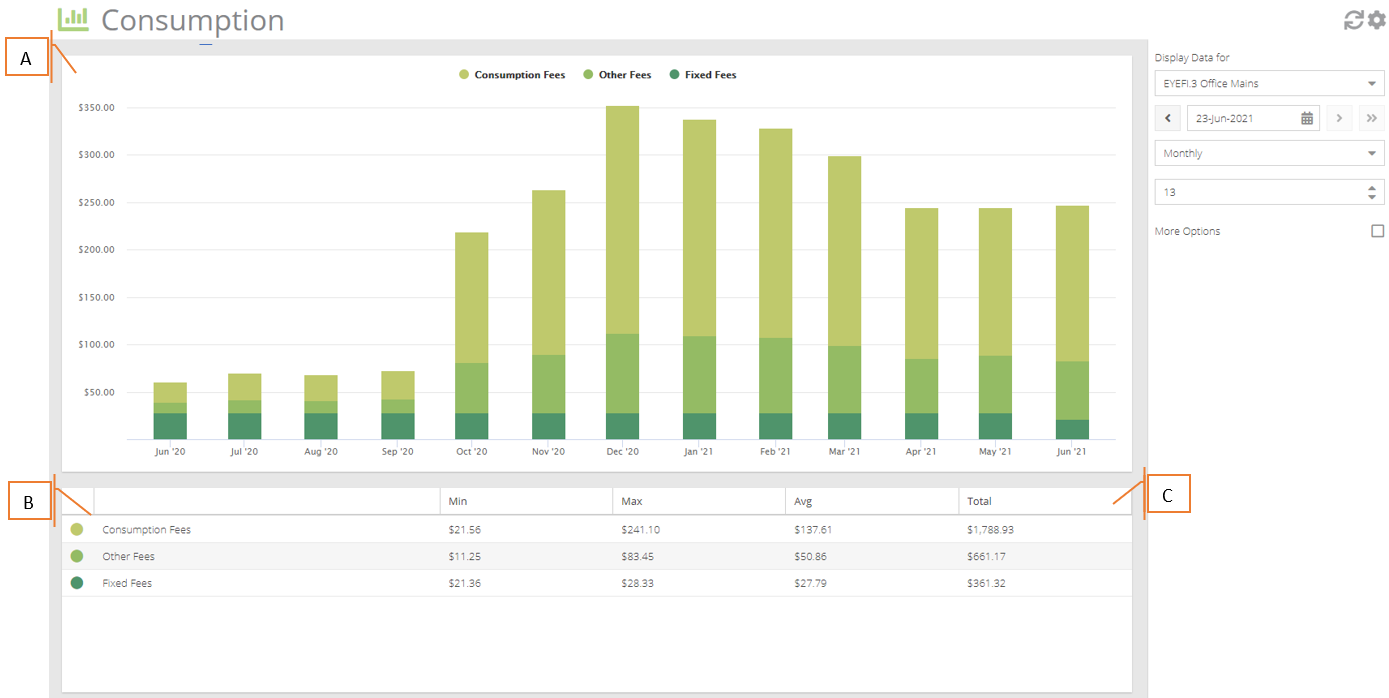

Example of Consumption graph with labels that correspond to the description table below

 FieldHow It’s Used

A

Summary GraphDisplays hourly, daily, weekly, or monthly cost or consumption data for all sensors of a specified Display Group.

B

Summary Graph LegendDisplays the graph legend and is used to toggle different series on or off in the Summary Graph.

C

Summary StatisticsDisplays basic statistics for data currently in the Summary Graph.



Additional Display Options

Labeled image of the consumption display options to match with the descriptions



  1. Plugin Refresh button and Display Options buttons.
  2. Specify which Display Group data should be displayed for by selecting the appropriate Display Group from the “Display data for” dropdown menu.
  3. Choose the date to which electrical consumption or cost data is displayed. By default this will be set to the current date.
  4. Choose the scale of the Summary Graph. 15-minute, hourly, daily, weekly, and monthly scales are currently supported.
  5. Choose the number of steps (in the x-axis) are shown in the Summary Graph.
  6. Click on the Options menu to customize your plugin settings.
  7. Specify whether the Summary plugin should display Cost ($) information or Consumption (kWh) information.
  8. Specify if the graph will be displayed as a Line graph, Column graph, or Area graph.
  9. Toggles whether values for each sensor will be stacked on top of each other or displayed side-by-side.
  10. Toggles data from each senor should be displayed as just the display group, or as separate sensors.
  11. Unchecking will allow the user to enter the Graph Min, and the Graph Max values.
  12. Toggles whether the Device Name is displayed in the Summary Graph Legend.



Mobile View

Consumption summary v5 mobile view.
