EYEDRO5-EBEM1

$299.00 USD

This model has been replaced by the equivalent model E5B-EW-E3

Ethernet Connected Energy Monitor for 3-Phase

Now with improved data storage capacity during internet outages

Energy monitoring for business/industrial applications

Combined with the MyEyedro cloud service, Eyedro electricity monitors provide timely and actionable information that will help you monitor usage, identify problems, reduce waste and ultimately spend less on electricity while working towards your company’s social responsibility targets.

Features:

  • See your electricity usage and calculate costs in real-time
  • Easy and non-invasive installation
  • Free monitoring via My.Eyedro.com
  • Supports 3-phase installations only
  • Customizable with any of the wide range of Eyedro ESCLV series current sensors from 5A – 3000A  (select model EYEDRO5-EBEM1-SUB when ordering alternate sensor sizes).   Flex sensors also available.

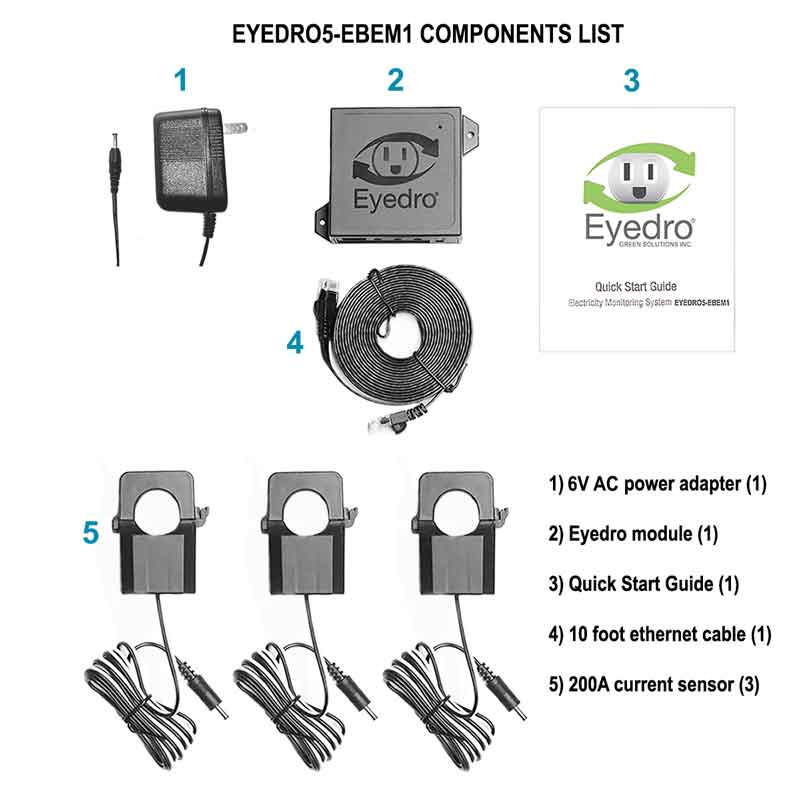

  • Includes:
      • Three (3) 200A current sensors
      • One (1) 3m (10ft) Ethernet cable
      • One (1) 6V AC power adapter
      • One (1) combination sensor/gateway module with 3 ports
      • One (1) Quick Start guide

Out of stock

Description

The Eyedro business electricity monitor, model EYEDRO5-EBEM1, is perfect for monitoring electricity consumption at the building service panel(s), sub-panel(s) or even at the equipment level. Ideal for monitoring 3-phase power. The sensors install in the electrical panel (up to 200A¹/600V AC), the module connects to a nearby internet connection (via the 10′ Ethernet cable provided) and the monitor immediately begins streaming data. For applications where there is no internet connection nearby, the wireless mesh model (Contact Sales) or WiFi connected EYEFI-3 may be used.

¹Higher amperage sensors (400A – 3000A) available with model EYEDRO5-EBEM1-SUB.

Real-Time Business Electricity Monitoring

Energy costs are traditionally one of the biggest operational costs in any organization, yet many businesses lack the tools to manage their energy efficiently. Eyedro business electricity monitors provide an easy and affordable way to monitor and track electricity use at work – empowering businesses to take control of their energy use and costs. Eyedro provides timely and actionable insights, allowing business owners and energy managers to monitor and track electricity across a range of applications.

Use Eyedro to:

  • Identify waste and potential savings
  • Discover peak power consumption and demand
  • Measure results of improvements (e.g. retrofit projects)
  • Monitor electricity consumption during operating and non-operating hours
  • Monitor electricity consumption at the building, department or equipment level

MyEyedro Cloud Service

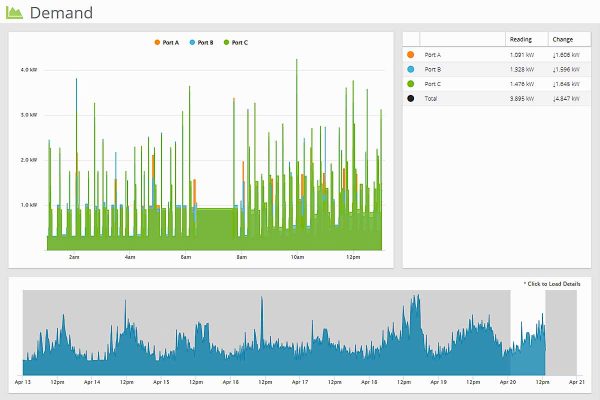

Eyedro and MyEyedro are always working together to measure, analyze and store electricity usage and cost information. With MyEyedro, electricity data is automatically and securely stored in the cloud, so it’s ready when and where you need it most. MyEyedro presents electricity data in ways that are engaging, informative and easy to understand; allowing you to see real-time electricity usage and gain access to many helpful features, including:

  • Responsive real-time graphs
  • Hourly/Daily/Weekly/Monthly consumption and cost estimates
  • High-resolution historical data
  • Downloadable data for further analysis

MyEyedro is easy to use and accessible from a standard web browser.

Getting Started – Install Eyedro Hardware

Installing Eyedro current sensors

Installing Eyedro modules

Eyedro Product Guide

Getting Started – MyEyedro Cloud Software

MyEyedro Cloud Overview Video Tutorial

MyEyedro User Guide

Additional information

Weight.940 kg
Dimensions25 × 20 × 8 cm
UPC/GTIN12

183968000005

Connection Type

Wired Ethernet
