Eyedro Product Selector
Benefits of monitoring with Eyedro and MyEyedro.com
• Discover phantom power, peak power, and waste
• See details behind your electric bill in real-time
• Measure improvements Eg. New lighting
• Verify equipment works Eg. Backup generator
• Be notified if power/internet fails Eg. Cottage
• Understand tenant usage
• Reduce usage, save $, and help the environment
• See details behind your electric bill in real-time
• Measure improvements Eg. New lighting
• Verify equipment works Eg. Backup generator
• Be notified if power/internet fails Eg. Cottage
• Understand tenant usage
• Reduce usage, save $, and help the environment
Business vs Home products?
Typically, residential customers with a single phase electrical service of 200A or less will use Eyedro Home Electricy Monitoring products.
All other applications would use Eyedro Business Electricity Monitoring products (single-phase or three-phase, up to 5000A, expandable wireless mesh network).
Wireless vs Wired products?
Wireless products are recommended when the internet connection and sensor location are in different rooms, or multiple sensor locations are needed.
Technical Features:

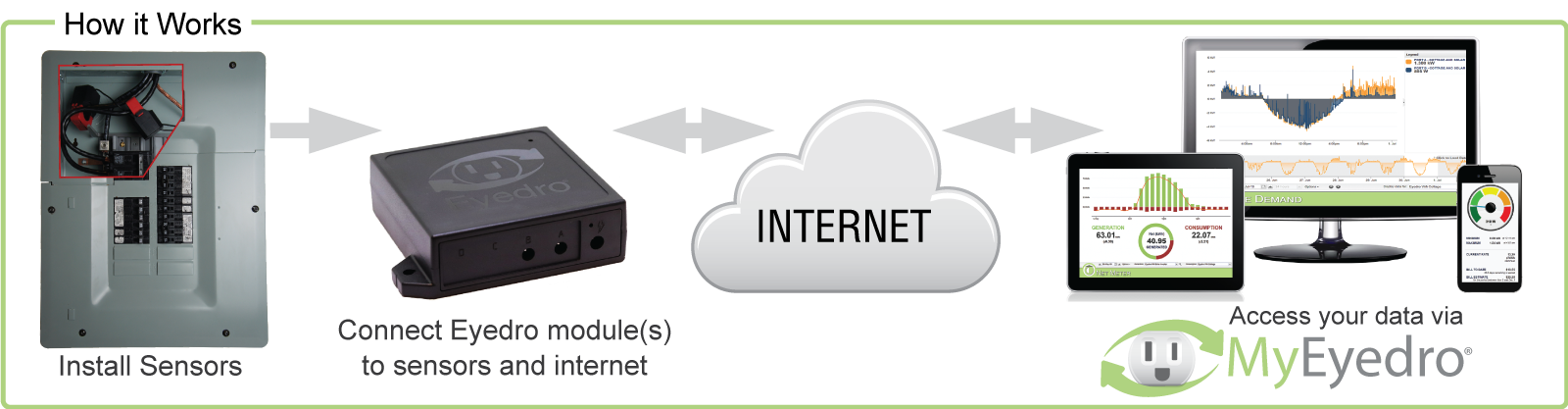

Non invasive installation – Simply
clip the sensors around circuit to be
monitored
clip the sensors around circuit to be
monitored
No complicated configuration – Just
connect the module to the internet
One second resolution
Low bandwidth usage – Typically less
than 1MB per day
Privacy – Electrical data sent over
the internet has no personally identifiable
information
Access via MyEyedro.com from any web
browser or smart phone
browser or smart phone
No batteries to end up in landfill
Monitors up to 5000A/600V service
Wireless – Private mesh network
between modules (wireless version only)
Expandable – Up to 32 sensor modules
(96 total sensors) per wireless gateway
(Eyedro Business Wireless Electricity
product only – EBWEM1*)
Eyedro Business Electricity Monitors
For applications up to 200A
Select product images to view pricing and other details.
| PART # | DESCRIPTION | SINGLE PHASE | THREE PHASE | WIRELESS | IMAGE |
|---|---|---|---|---|---|
| EBEM1 | Electricity Monitor - Includes three (3) 200A sensors | Yes | Yes | ||
| EBWEM1 | Wireless Electricity Monitor - Includes three (3) 200A sensors | Yes | Yes | Yes | |
| EBWXS3 | Wireless 3-Sensor Expansion – Includes three (3) 200A sensors | Yes | Yes | Yes* | |
| EBWXS2 | Wireless 2-Sensor Expansion – Includes two (2) 200A sensors | Yes | Yes* | ||
| EBWXS1 | Wireless 1-Sensor Expansion – Includes one (1) 200A sensor | Yes | Yes* |
| PART # | DESCRIPTION | SINGLE-PHASE | THREE-PHASE | WIRELESS | IMAGE |
|---|---|---|---|---|---|
| EBEM1-SUB | Electricity Monitor – No sensors included | Yes | Yes | ||
| EBWEM1-SUB | Wireless Electricity Monitor – No sensors included | Yes | Yes | Yes | |
| EBWXS3-SUB | Wireless 3-Sensor Expansion – No sensors included | Yes | Yes | Yes* | |
| EBWXS2-SUB | Wireless 2-Sensor Expansion – No sensors included | Yes | Yes* | ||
| EBWXS1-SUB | Wireless 1-Sensor Expansion – No sensors included | Yes | Yes* |
Sensor Product Selector
For -SUB products
Select product images to view pricing and other details.
Eyedro Current Sensor Selector for Home Products
(Split-Core Sensors: 5A - 200A)
| PART # | DESCRIPTION | RATING | SIZE | OPENING | IMAGE |
|---|---|---|---|---|---|
| ESCLV-10-5A | 5A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-10A | 10A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-30A | 30A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-40A | 40A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-60A | 60A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-20A | 20A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-10-15A | 15A | 300V | 1.500 x 1.000 in (38 x 25 mm) | Ø 0.375 in (10 mm) |  |
| ESCLV-16-100A | 100A | 300V | 1.750 x 1.380 in (44 x 35 mm) | Ø 0.625 in (16 mm) |  |
| ESCLV-25-200A | 200A | 600V | 2.75 x 2.00 in (70 x 51 mm) | Ø 1.000 in (25 mm) |  |
