Wireless Mesh (802.15.4) energy meter models available.
We recommend our latest WiFi/Ethernet models (eg. 3-Phase Energy Meter and Inline Power Meter), but for those customers that need wireless mesh (802.15.4), the models below are available. Please contact Eyedro Sales for more information.
| SKU (Eyedro Model) | Description |
|---|---|
| E5B-M-GW | Eyedro Wireless Mesh Gateway (Ethernet). Gateway access point for a wireless mesh network up to 31 sensor modules. Includes 1 gateway module, ethernet cable, power adapter. UPC 784668444795. |

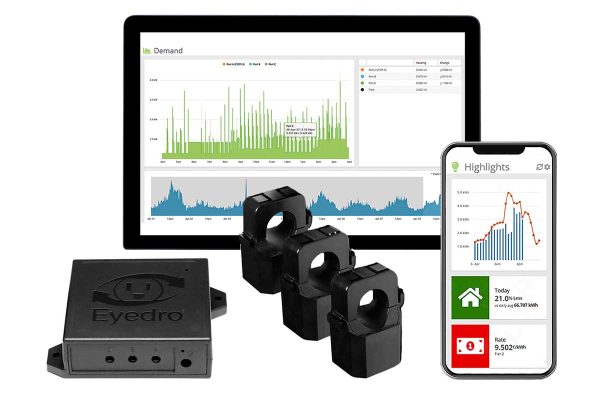

| E5B-M-E3 | Eyedro Wireless Mesh Expansion 3-Phase Energy Monitor. Measures watt-hours, watts, amps, volts, power factor. Includes 1 sensor module (3-ports), 3 directional 200A sensors, power adapter. Extends existing wireless mesh network (requires gateway). UPC 784668444818. |
| E5B-M-E3-400A | * Same as E5B-M-E3 except 400A sensors. UPC 784668445327. |
| E5B-M-E3-600A | * Same as E5B-M-E3 except 600A sensors. UPC 784668445334. |
| E5B-M-E3-800A | * Same as E5B-M-E3 except 800A sensors. UPC 784668445341. |
| E5B-M-E3-110-1000A | * Same as E5B-M-E3 except 110mm 1000A flex sensors (green) |
| E5B-M-E3-110-3000A | * Same as E5B-M-E3 except 110mm 3000A flex sensors (green) |
| E5B-M-E3-180-1000A | * Same as E5B-M-E3 except 180mm 1000A flex sensors (green) |
| E5B-M-E3-180-3000A | * Same as E5B-M-E3 except 180mm 3000A flex sensors (green) |
| E5B-M-E3-SUB | Eyedro Wireless Mesh Expansion 3-Phase Energy Monitor. Measures watt-hours, watts, amps, volts, power factor. Includes 1 sensor module (3-ports), power adapter. Sensors purchased separately. Extends existing wireless mesh network. UPC 784668444825. |
| E5B-M-REP | Eyedro Wireless Mesh Repeater. Expands the range of a wireless mesh network up to 31 sensor modules. Includes 1 repeater module, power adapter. UPC 784668444801. |
| Weight | 1.1 kg |
|---|---|
| Dimensions | 26 × 20 × 10 cm |
| Connectivity Type | Wireless Mesh (2.405 to 2.480 GHz) |
| Specifications | See list description. |
| Environment | Commercial/Industrial |
| Product Type | Energy Meter |
| Install Location | Electrical Panel, Other |
