Eyedro Business Electricity Monitors
Energy costs are traditionally one of the biggest operational costs in any organization, yet many businesses lack the tools to manage their energy efficiently. Eyedro business electricity monitors provide an easy and affordable way to monitor and track electricity use at work – empowering businesses to take control of their energy use and costs. Eyedro provides timely and actionable insights, allowing business owners and energy managers to monitor and track electricity across a range of applications.
Customizable energy monitoring for business and industrial applications with Eyedro’s current sensor series from 5A to 3000A. Flex sensors (Rogowski coil) are also available.

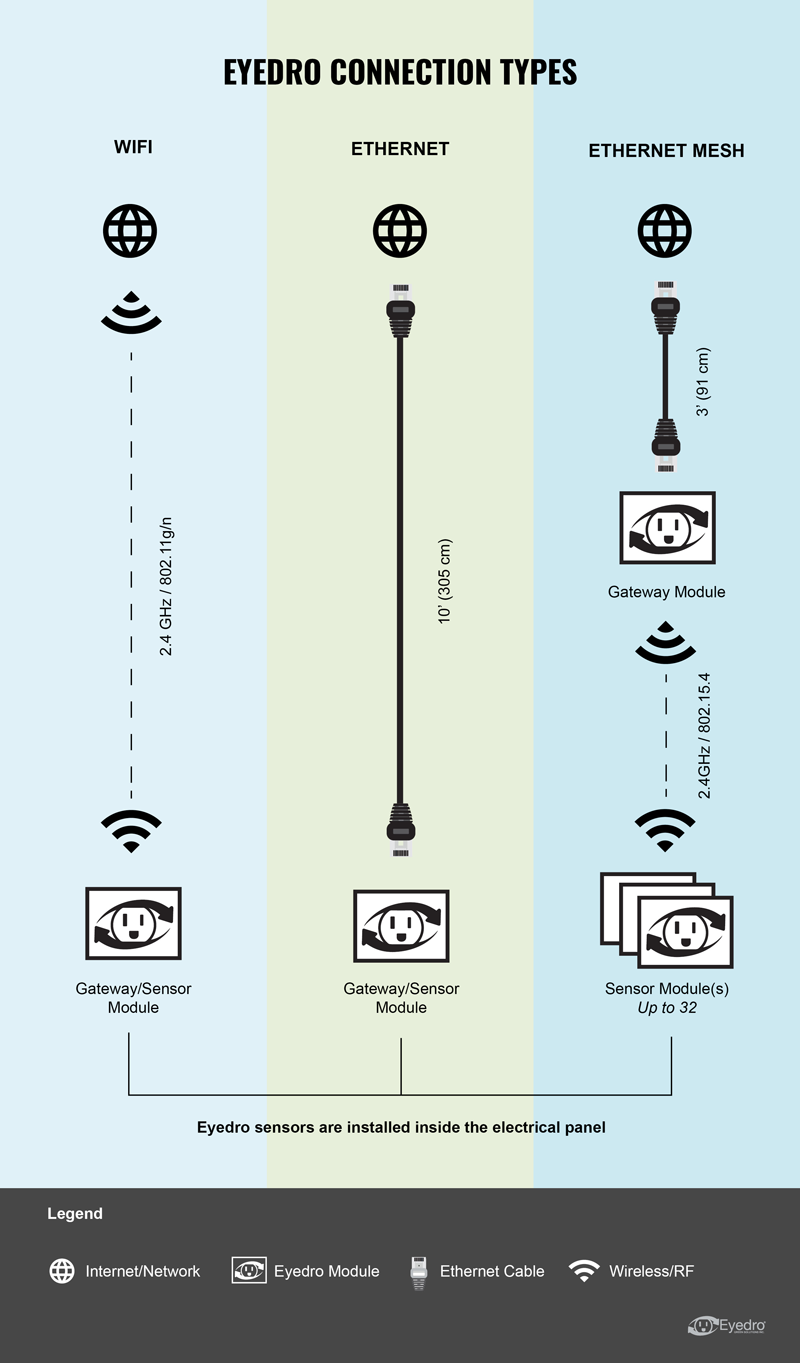

WiFi
Model: EYEFI-3- Solar Ready
- 2.4 GHz WiFi
- 3-phase
- MyEyedro cloud - no subscription fees
- Real-time energy usage & cost data (1 second resolution)
- Comprehensive daily, weekly, monthly and yearly reports
- Historical data available
- Bill comparisons and estimates
- Downloadable data - base load power identifier
- Daily insights - view data in watts, amps and $
- Monitor mains or branch circuits
- Three (3) 200A sensors included (supports 5A - 3000A)
- Easy, non-invasive installation
- Export data to Excel
- Utility dashboard
- Meets North American safety standards
- Measure volts and power factor
- Local web server
- Directional sensing capability
- Net metering - optimized for solar
Ethernet

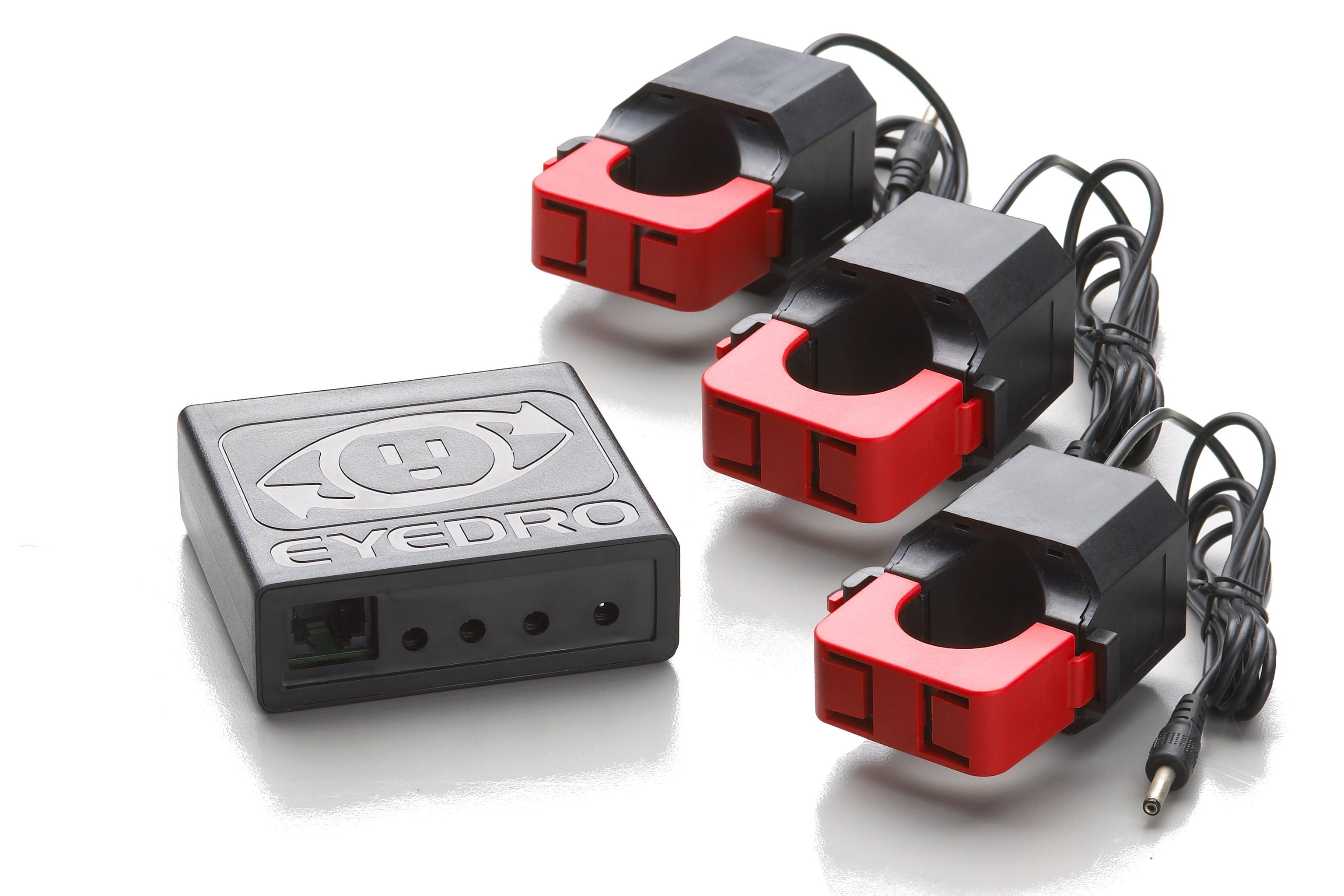

Model: EYEDRO5-EBEM1Solar Ready- Ethernet connected
- Single or 3-phase
- MyEyedro cloud - no subscription fees
- Real-time energy usage & cost data (1 second resolution)
- Comprehensive daily, weekly, monthly and yearly reports
- Historical data available
- Bill comparisons and estimates
- Downloadable data - base load power identifier
- Daily insights - view data in watts, amps and $
- Monitor mains or branch circuits
- Three (3) 200A sensors included (supports 5A - 3000A)
- Easy, non-invasive installation
- Export data to Excel
- Utility dashboard
- Meets North American safety standards

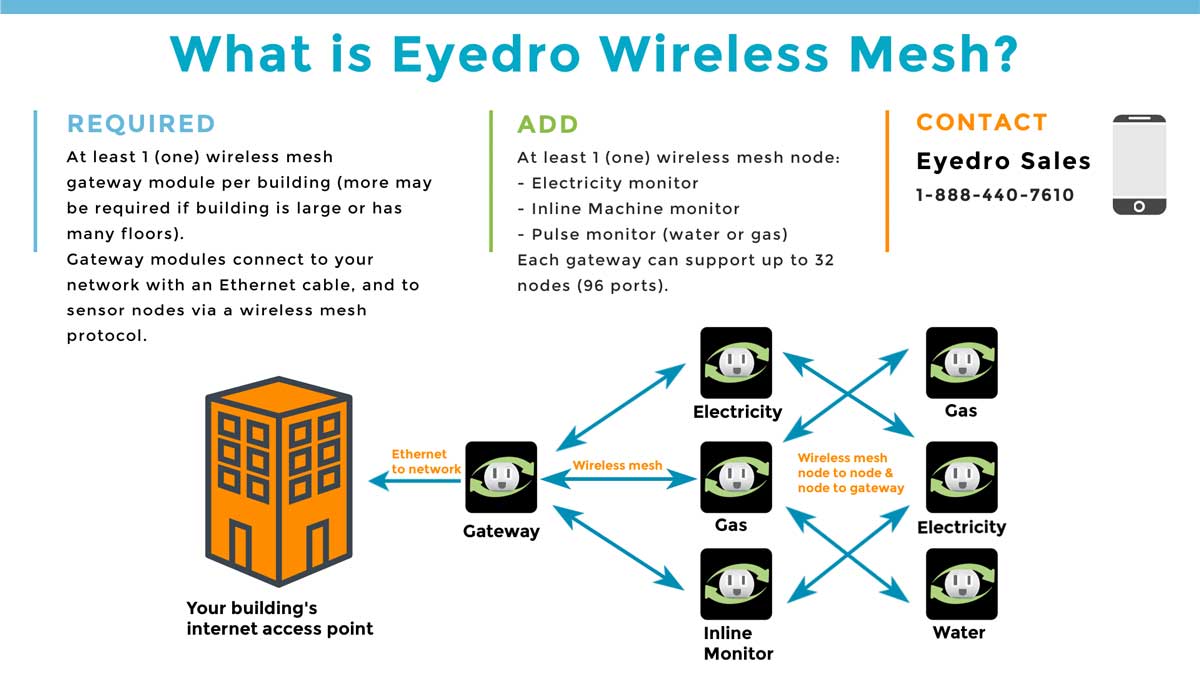

Ethernet Mesh

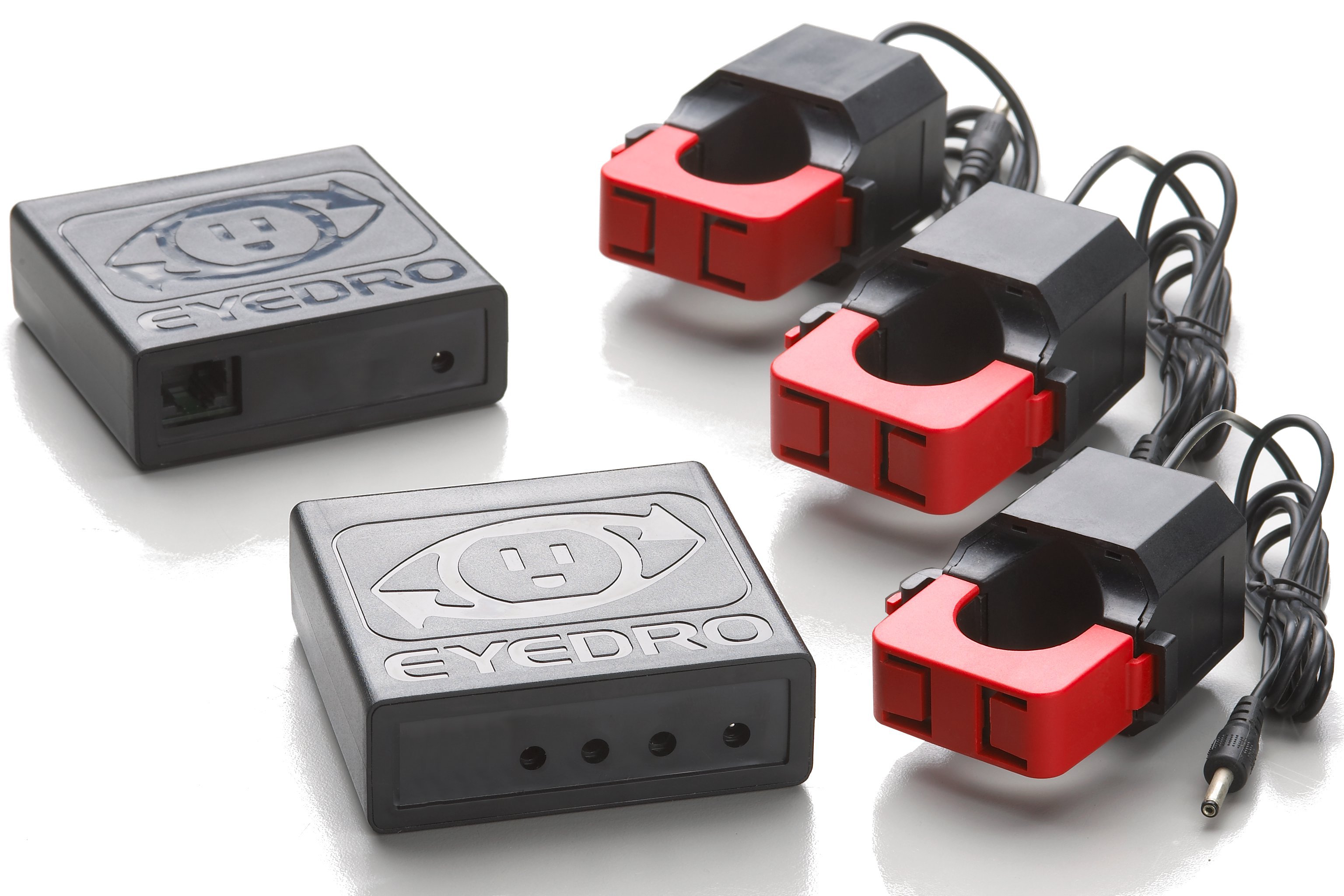

Model: EBWEM1-LVSolar Ready- Ethernet/wireless mesh
- Single or 3-phase
- MyEyedro cloud - no subscription fees
- Real-time energy usage & cost data (1 second resolution)
- Comprehensive daily, weekly, monthly and yearly reports
- Historical data available
- Bill comparisons and estimates
- Downloadable data - base load power identifier
- Daily insights - view data in watts, amps and $
- Monitor mains or branch circuits
- Three (3) 200A sensors included (supports 5A - 3000A)
- Easy, non-invasive installation
- Export data to Excel
- Utility dashboard
- Meets North American safety standards

Features
- See your electricity usage and costs in real-time from any web browser
- Easy non-invasive installation
- High resolution data. Captures appliance start-up spikes
- Free monitoring via MyEyedro.com
- MyEyedro features:
- Responsive real-time graphs
- Maintains full 24/7 usage history
- Hourly, daily, weekly and monthly consumption and costs
- Supports fixed, tiered, and time-of-use rate structures
- Estimates what your current electrical bill will cost
- Be notified of power or network failure
Specifications
- Power: 100-240VAC 50/60Hz to 5VDC 0.300A wall adapter to power module (ethernet and wireless mesh devices)
- Power: 120VAC 60Hz to 6VAC 500mA wall adapter to power module (WiFi connected devices) – European style type C, 220V – 240V AC adapters also available
- Operating Conditions: 32-122°F (0-50°C) 80% relative humidity – indoor use only
- Module Dimensions: 3 x 3 x 1 in (77 x 75 x 25 mm)
- Shipping Weight/Mass: approx 35 oz (1 kg)
Wireless Products Only
- Wireless Range: 1000 ft (300 m) in direct line-of-sight (wireless mesh devices)
- Wireless Range: 300 ft (92 m) in direct line-of-sight (WiFi devices)
- Operating Frequency: 2450MHz ISM (2.4G Band)
200A Sensors –Â (alternate sensor sizes available)
- Sensor Rating: Maximum 200A at 600V
- Sensor Dimensions: 2.75 x 2.0 x 1.5 in (70 x 50 x 38 mm)
- Sensor Opening: 1 in (25 mm) – suitable for 3/0 Wire
